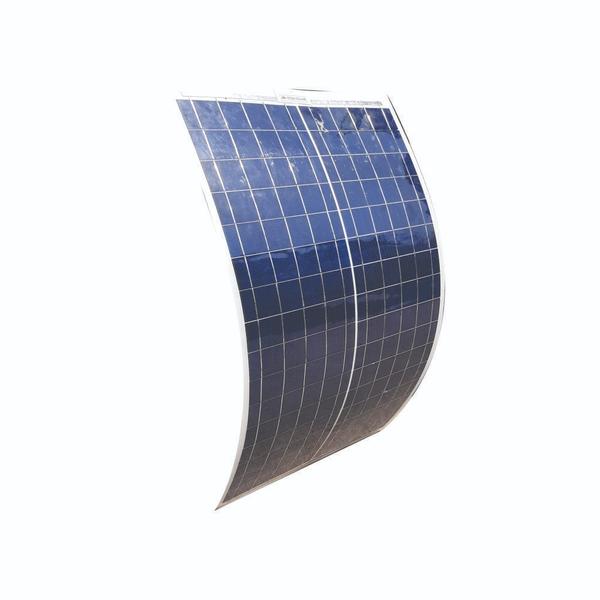

Semi flexible solar panel
Category
Solar PanelType
Polycrystalline
Power Range
93 - 103 Wp
Models
1
Select Quantity
Product Description
AC SOLAR PANEL 100 WATT DOUBLE BATTERY
SPECIFICATION: -
BRAND : ATON SOLAR
MODEL : ATONACPV100S2X
APPROVED : BIS , MNRE
CAPACITY SOLAR PANEL : 100 WATT
SOLAE CELL PER MADULE : 36 CELL
SOLAR CELL TYPE : POLYCRYSTALLINE PERC
SOLAR CELL SIZE : 157*157mm
EFFICIENCY : 17 %
WEIGHT : 4.5Kgs
LENGTH : 1055mm
WIDTH : 720mm
OUTPUT VOLTAGE : 220 volts
BACKUP : 6WH
Feature:
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Strictly quality control ensure the stability and reliability .
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.
4. Solar Panel leads for easy plug and play use.
USES :-
- Easily be pasted or fixed on any roof type.
- Light weight which can be easily hooked up or pasted on tent cloth.
- Can easily mounted or pasted aton portacabin's roof.
- Framless.
warranty : one year
power warranty : 25 year
Technical Details
Technical Specification Per Model
| Model No. | ATONFPV100P |
|---|---|
| Electrical Data -STC | |
| Maximum Power (Pmax) | 100 Wp |
| Voltage at Maximum Power (Vmpp) | 220 V |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Panel Efficiency | 17 % |
| Power Tolerance (Positive) | |
| Electrical Data -NOCT | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Panel Efficiency | 17 % |
| Power Tolerance (Positive) | |
| Temperature °C | |
| Thermal Rating | |
| Operating Temperature Range °C | |
| Temperature Coefficient of Pmax | |
| Temperature Coefficient of Voc | |
| Temperature Coefficient of Isc | |
| Maximum Rating | |
| Maximum System Voltage | V |
| Series Fuse Rating | |
| Material Data | |
| Dimension (H/W/D) (mm) | 1008 x 684 x 8 mm |
| Weight | 1.2 KG |
| Cell Type | Polycrystalline |
| Cell Size | 157 x 157 mm |
| Cell Number | 36 |
| Glass Type | Tempered |
| Glass Thickness | 3 mm |
| Encapsulant Type | |
| Back Cover Type | |
| Frame Type | Aluminium Alloy |
| Junction Box Protection Class | IP66 |
| Junction Box Diodes | |
| Connector Type | |
| Cable Crossection | |
| Cable Length | |
| Warranty | |
| Product Warranty | 1 Years |
| Power Warranty | 25 Years |
| Pricing | |
| Approximate Price | INR 1800 |
