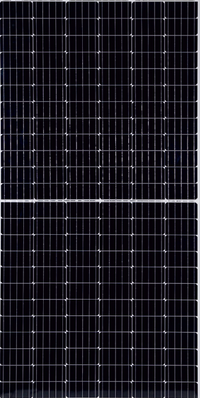

Mono Crystalline Solar Module
Category
Solar PanelType
Monocrystalline
Power Range
530 - 550 Wp
Datasheet
Models
3
Select Quantity
Product Description
- Superior Price Performance of half-cell without much cost addition
- Bypass diodes and innovative interconnection for better partial shadow performance.
- Half cut cell reduces Hot spots and power loss.
- IP 68 Split Junction Box for better heat dissipation.
- Positive power tolerance upto +5 wp.
Technical Specification Per Model
| Model No. | 530 | 540 | 550 |
|---|---|---|---|
| Electrical Data -STC | |||
| Maximum Power (Pmax) | 530 Wp | 540 Wp | 550 Wp |
| Voltage at Maximum Power (Vmpp) | 41.28 V | 41.7 V | 42.11 V |
| Current at Maximum Power (Impp) | 12.84 A | 12.95 A | 13.06 A |
| Open Circuit Voltage (Voc) | 49.61 V | 49.95 V | 50.28 V |
| Short Circuit Current (Isc) | 13.66 A | 13.78 A | 13.9 A |
| Panel Efficiency | 20.5 % | 20.9 % | 21.3 % |
| Power Tolerance (Positive) | 5 % | 5 % | 5 % |
| Electrical Data -NOCT | |||
| Maximum Power (Pmax) | 407.16 Wp | 414.85 Wp | 422.53 Wp |
| Voltage at Maximum Power (Vmpp) | 37.62 V | 38.01 V | 38.39 V |
| Current at Maximum Power (Impp) | 10.82 A | 10.91 A | 11.01 A |
| Open Circuit Voltage (Voc) | 45.8 V | 46.12 V | 46.42 V |
| Short Circuit Current (Isc) | 11.58 A | 11.68 A | 11.78 A |
| Panel Efficiency | 20.5 % | 20.9 % | 21.3 % |
| Power Tolerance (Positive) | 530 % | 540 % | 550 % |
| Temperature °C | 45 ± 2 | 45 ± 2 | 45 ± 2 |
| Thermal Rating | |||
| Operating Temperature Range °C | 40 ~ 85 | 40 ~ 85 | 40 ~ 85 |
| Temperature Coefficient of Pmax | -0.266 %/°C | -0.266 %/°C | -0.266 %/°C |
| Temperature Coefficient of Voc | 0.046 %/°C | 0.046 %/°C | 0.046 %/°C |
| Temperature Coefficient of Isc | -0.354 %/°C | -0.354 %/°C | -0.354 %/°C |
| Maximum Rating | |||
| Maximum System Voltage | -0.266 V | -0.266 V | -0.266 V |
| Series Fuse Rating | -0.266 A | -0.266 A | -0.266 A |
| Material Data | |||
| Dimension (H/W/D) (mm) | 2279 x 1134 x 35 mm | 2279 x 1134 x 35 mm | 2279 x 1134 x 35 mm |
| Weight | 28.5 KG | 28.5 KG | 28.5 KG |
| Cell Type | Monocrystalline | ||
| Cell Size | 182 x 182 mm | 182 x 182 mm | 182 x 182 mm |
| Cell Number | 144 | 144 | 144 |
| Glass Type | Tempered, Anti Reflection Coating | Tempered, Anti Reflection Coating | Tempered, Anti Reflection Coating |
| Glass Thickness | 2.8 mm | 2.8 mm | 2.8 mm |
| Encapsulant Type | EVA | EVA | EVA |
| Back Cover Type | Composite film | Composite film | Composite film |
| Frame Type | Anodized Aluminium Alloy | Anodized Aluminium Alloy | Anodized Aluminium Alloy |
| Junction Box Protection Class | IP68 | IP68 | IP68 |
| Junction Box Diodes | 3 | 3 | 3 |
| Connector Type | MC4 | MC4 | MC4 |
| Cable Crossection | 4 mm | 4 mm | 4 mm |
| Cable Length | 300 mm | 300 mm | 300 mm |
| Warranty | |||
| Product Warranty | 10 Years | 10 Years | 10 Years |
| Power Warranty | 25 Years | 25 Years | 25 Years |
