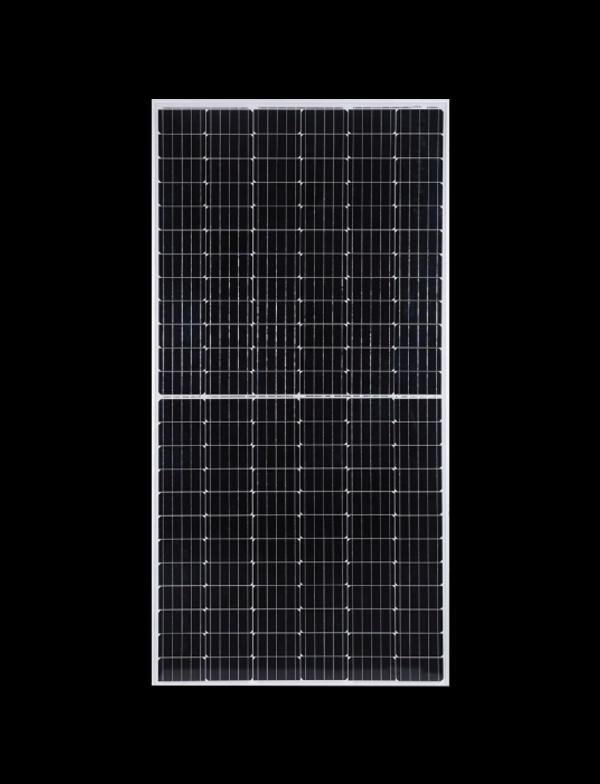

EMMVEE Sapphire Bi-Facial Glass to Glass Module

Manufacturer

EMMVEE

EMMVEE Solar

Founded

1992

Headquarter

India

Product Description

BI-FACIAL MODULE

Positive power tolerance +5W

• Glass to Glass Composition

• Half Cut Cell Technology

• Best Warranty

• 10BB instead of 5BB

• Enhanced Mechanical Load

• Higher lifetime Power Yield

• Multi Busbar Technology

• Longer Lifetime Power Yield

• PID Resistance

• Excellent Low-light Performance

• Higher Power Output

Technical Specification Per Model

Model No.	E535HCBG144	E540HCBG144	E545HCBG144	E550HCBG144
Electrical Data -STC
Maximum Power (Pmax)	535 Wp	540 Wp	545 Wp	550 Wp
Voltage at Maximum Power (Vmpp)	41.32 V	41.54 V	41.61 V	41.62 V
Current at Maximum Power (Impp)	12.95 A	13 A	13.1 A	13.22 A
Open Circuit Voltage (Voc)	49.35 V	49.5 V	49.75 V	49.9 V
Short Circuit Current (Isc)	13.59 A	13.62 A	13.88 A	14.01 A
Panel Efficiency	20.71 %	20.9 %	21.1 %	21.29 %
Power Tolerance (Positive)
Electrical Data -NOCT
Maximum Power (Pmax)
Voltage at Maximum Power (Vmpp)
Current at Maximum Power (Impp)
Open Circuit Voltage (Voc)
Short Circuit Current (Isc)
Panel Efficiency
Power Tolerance (Positive)
Temperature °C
Thermal Rating
Operating Temperature Range °C	-40 ~ 85	-40 ~ 85	-40 ~ 85	-40 ~ 85
Temperature Coefficient of Pmax	-0.35 %/°C	-0.35 %/°C	-0.35 %/°C	-0.35 %/°C
Temperature Coefficient of Voc	-0.28 %/°C	-0.28 %/°C	-0.28 %/°C	-0.28 %/°C
Temperature Coefficient of Isc	-0.05 %/°C	-0.05 %/°C	-0.05 %/°C	-0.05 %/°C
Maximum Rating
Maximum System Voltage	-0.35 V	-0.35 V	-0.35 V	-0.35 V
Series Fuse Rating	-0.35 A	-0.35 A	-0.35 A	-0.35 A
Material Data
Dimension (H/W/D) (mm)	2278 x 1134 x 35 mm	2278 x 1134 x 35 mm	2278 x 1134 x 35 mm	2278 x 1134 x 35 mm
Weight	30 KG	30 KG	30 KG	31 KG
Cell Type	Bifacial	Bifacial	Bifacial	Bifacial
Cell Size	182 x 91 mm	182 x 91 mm	182 x 91 mm	182 x 91 mm
Cell Number	144	144	144	146
Glass Type	Tempered, Anti Reflection Coating	Tempered, Anti Reflection Coating	Tempered, Anti Reflection Coating	Tempered, Anti Reflection Coating
Glass Thickness	2 mm	2 mm	2 mm	2 mm
Encapsulant Type	EVA	EVA	EVA	EVA
Back Cover Type	POE	POE	POE	POE
Frame Type	Anodized Aluminium Alloy	Anodized Aluminium Alloy	Anodized Aluminium Alloy	Anodized Aluminium Alloy
Junction Box Protection Class	IP68	IP68	IP68	IP68
Junction Box Diodes	3	3	3	3
Connector Type	MC4	MC4	MC4
Cable Crossection	4 mm	4 mm	4 mm	4 mm
Cable Length	500 mm	500 mm	500 mm	500 mm
Warranty
Product Warranty	12 Years	12 Years	12 Years	12 Years
Power Warranty	30 Years	30 Years	30 Years	30 Years
Pricing
Approximate Price	INR 12305	INR 12420	INR 12535	INR 12649
