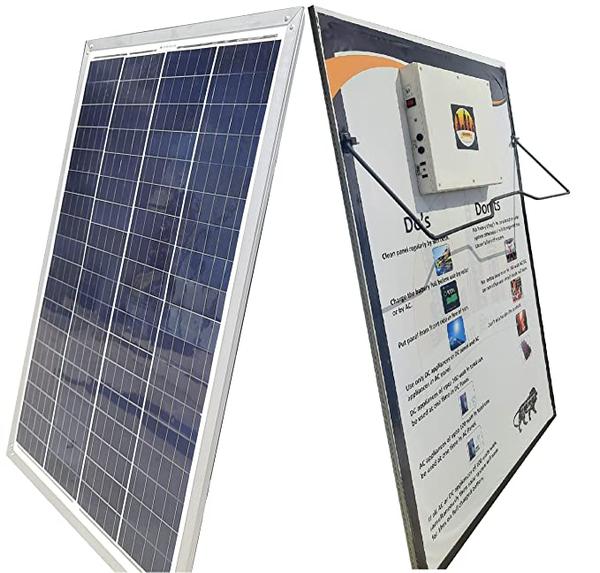

AC SOLAR PANEL 100 WATT DOUBLE BATTERY
Category
Solar PanelType
Polycrystalline
Power Range
97 - 103 Wp
Models
1
Select Quantity
Product Description
AC SOLAR PANEL 100 WATT DOUBLE BATTERY
SPECIFICATION: -
BRAND : ATON SOLAR
MODEL : ATONACPV100S2X
APPROVED : BIS , MNRE
CAPACITY SOLAR PANEL : 100 WATT
SOLAE CELL PER MADULE : 36 CELL
SOLAR CELL TYPE : POLYCRYSTALLINE PERC
SOLAR CELL SIZE : 157*157mm
EFFICIENCY : 17 %
WEIGHT : 4.5Kgs
LENGTH : 1055mm
WIDTH : 720mm
OUTPUT VOLTAGE : 220 volts
BACKUP : 6WH
FEATURES :-
- It is light weight
- battery backup
- AC solar panel can be easily installed any where .
- Can run any AC applicance like bulb, tubelight ,fan etc .
Polycrystalline solar cells can help you generate up to 100W of electricity on a single charge. This panel is very easy to install and is not at all heavy. This panel can be dismantled and reinstalled at any other location very easily.
These efficient solar panels offer with reduced electricity bills, maximized power generation, better performance in hot climates, low maintenance cost, high durability and diverse applications.
warranty : one year
power warranty : 25 year
Technical Specification Per Model
| Model No. | ATONACPV100S2X |
|---|---|
| Electrical Data -STC | |
| Maximum Power (Pmax) | 100 Wp |
| Voltage at Maximum Power (Vmpp) | 18.06 V |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | 20.5 V |
| Short Circuit Current (Isc) | 5.78 A |
| Panel Efficiency | 17 % |
| Power Tolerance (Positive) | 2 % |
| Electrical Data -NOCT | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | 18.06 V |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | 20.5 V |
| Short Circuit Current (Isc) | 5.78 A |
| Panel Efficiency | 15.9 % |
| Power Tolerance (Positive) | 100 % |
| Temperature °C | 40 ± 85 |
| Thermal Rating | |
| Operating Temperature Range °C | |
| Temperature Coefficient of Pmax | |
| Temperature Coefficient of Voc | |
| Temperature Coefficient of Isc | |
| Maximum Rating | |
| Maximum System Voltage | V |
| Series Fuse Rating | |
| Material Data | |
| Dimension (H/W/D) (mm) | 1055 x 720 x 8 mm |
| Weight | 4.5 KG |
| Cell Type | Polycrystalline |
| Cell Size | 157 x 157 mm |
| Cell Number | 36 |
| Glass Type | Tempered |
| Glass Thickness | 3.2 mm |
| Encapsulant Type | |
| Back Cover Type | composite film |
| Frame Type | Aluminium Alloy |
| Junction Box Protection Class | IP66 |
| Junction Box Diodes | |
| Connector Type | |
| Cable Crossection | |
| Cable Length | |
| Warranty | |
| Product Warranty | 1 Years |
| Power Warranty | 25 Years |
| Pricing | |
| Approximate Price | INR 16000 |
